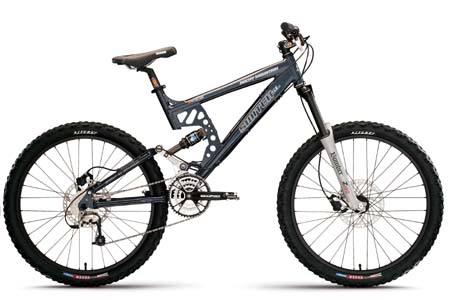

2004 Rocky Mountain Switch SL







COLOUR(S)
Smoke
SPECIFICATIONS
Frame
Frame Weight
Fork & Fender
Front Travel
Rear Shock
Rear Travel
Head Set
Stem
Handlebar
Brakes
Brake Levers
Shifters
Gearing (RR/FR)
Cranks & Chainrings
Bottom Bracket
Pedals
Hubs (RR/FR)
Cog-Set
Chain
Spokes
Rims
Tires (RR/FR)
Seat Post
Saddle

Easton RAD SL Taperwall Aluminum
3.63 kg / 8.0 lb
Marzocchi Z150 FR SL QR120
155 mm
Fox Float RL AVA ProPedal  (I replaced with a Manitou SPV Coil 4-Way)
152 mm
FSA Pig DH Pro
Easton Vice
Easton EA50 MonkeyBar
Hayes HFX-9
Hayes HFX-9
Shimano LX
Shimano XT, Shimano LX
Race Face Evolve XC
Race Face Isis
Shimano PDM424
Shimano M525 Disc, RMB QR20
Shimano LX 9 spd
Shimano HG53-9
DT Champion
Mavic F219
Ritchey Motovader 2.6", Ritchey Motovader 2.6"
Easton EA50
Custom Titec Ithys

GEOMETRY
Size
Head Angle
Seat Angle
Horiz. Toptube Length
Headtube Length
Chainstay Length
BB Drop
Top Tube Drop
Wheelbase
Front-Centre
Standover Height
16.5" 18.0" 19.5"
67.5° 67.5° 67.5°
72.5° 72.0° 72.0°
555 590 610
105 115 130
435 435 435
10 10 10
98 107 107
1084 1114 1135
649 679 701
762 792 821
THRUST LINK SUSPENSION
At Rocky Mountain, our bikes are built by people who love to ride, for people who love to ride. And because we’re passionate about riding we hand build frames to ensure each step in the building process meets our standard of quality. We miter our frame tubes individually to the most exacting tolerances. We set each tube set in a size and platform specific custom jig and tack and weld each one carefully by hand for the toughest, most perfectly aligned frame you can buy. We design and CNC our own frame components. We even hand buff, powder coat and mask frames individually by hand. And we do it all here in our factory in Vancouver, B.C. to ensure the quality, durability, and performance of our bicycles.

Yes, it takes more time and effort to build a bike this way. But if you love your bike, it’s worth it.


James' Settings

Front Shock -  USE 35psi positive (Outside Hole) & 135psi negative (Center Hole)
